Asphalt Pavers

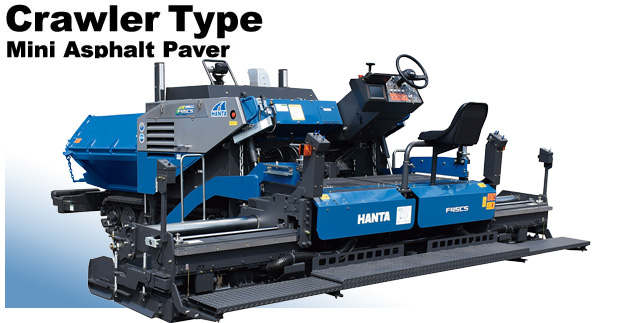

Crawler Type Mini Asphalt Pavers
Crawler Type Mini Asphalt Paver
Product Feature

Making the best use of voices from the worksites for product development, we have completed the full line of paver models mounting RV2-stage and RV3-stage screeds from the ultra mini type F14C5 best suited for the confined area paving to compact Mini Design Model F45C5 that covers full one lane paving width.
LINE UP
Click each Model Name for Details!!
Type Paving Width Weight Engine Low Noise Level Cleared Exhaust Gas Level Cleared
F14C5 0.8～1.4m 2,850kg 18.2kW/2,200min-1
BP25C5 1.4～2.5m 5,200kg 30.7kW/2,200min-1
BP31C5B 1.7～3.1m 5,940kg 36.0kW/2,200min-1
F1432C5B 1.4～3.2m 5,710Kg 30.7kW/2,200min-1
F1741C2B 1.75～4.1m 6,580Kg 36.0kW/1,900min-1
F45C3 2.35～4.5m 7,300Kg 49.0kW/2,000min-1
F45C5 2.35～4.5m 7,420Kg 54.6kW/2,200min-1
pagetop

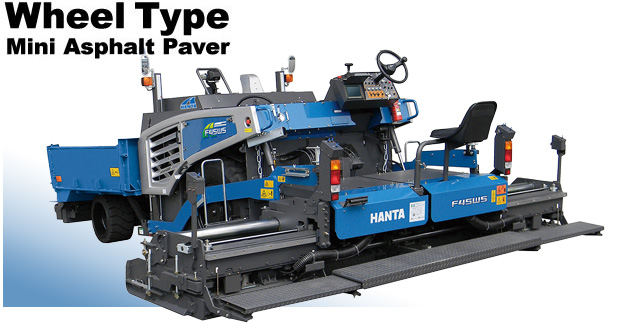

Wheel Type Mini Asphalt Pavers
Wheel Type Mini Asphalt Paver
Product Feature

Adopting all wheels drive system, a stable low paving speed and high mobility transport speed can be obtained. All models equipped with either versatile RV2-stage or RV3-stage screed can safely and effectively cover a wide range of paving widths even small size pavers.
LINE UP
Click each Model Name for Details!!
Type Paving Width Weight Engine Low Noise Level Cleared Exhaust Gas Level Cleared
BP25W5 1.4～2.5m 5,470kg 30.7kW/2,200min-1
BP31W5 1.7～3.1m 6,220kg 39.0kW/2,200min-1
F1432W5B 1.4～3.2m 5,980kg 30.7kW/2,200min-1
F1741W5 1.75～4.1m 7,140kg 39.0kW/2,200min-1
F45W3 2.35～4.5m 7,500kg 49.0kW/2,000min-1
F45W5 2.35～4.5m 7,560kg 54.6kW/2,200min-1
