Asphalt Paver

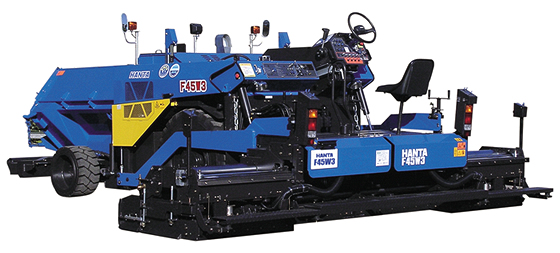

Wheel Type Mini Asphalt Paver: F45W3

Wheels Type Mini Asphalt Paver: F45W3
OUTLINE

The simple but most reliable rear variable telescopic standard design screed is equipped for less maintenance cost, and the hydraulically adjustable device for extension screed height, screed crown & invert, auto-screed burner ignition and swing out side plates are equipped as the standard for lightening an operator's burden.

Main Technical Data

Type  F45W3
Weight 7,500kg
Paving Width 2.35~4.5m
Dimensions(L×W×H) 5,250(L)×2,470(W)×1,980(H)mm
Laying Thickness 10~150mm
Laying Speed 4WD:1~9m/min
Engine 49.0kW(66.6ps)/2,000min-1

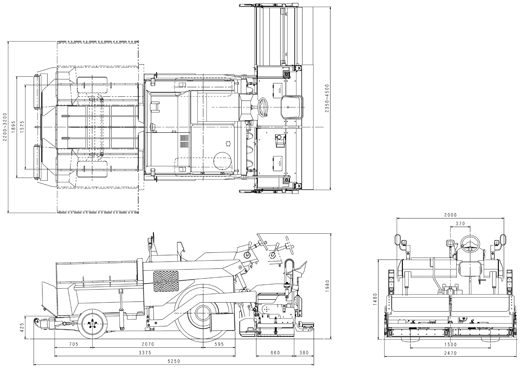

Dimensions
Wheels Type Mini Asphalt Paver: F45W3

Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport. (97’Version)
Conformity vehicle for exhaust gas control standard to designated special vehicles.
