Asphalt Paver

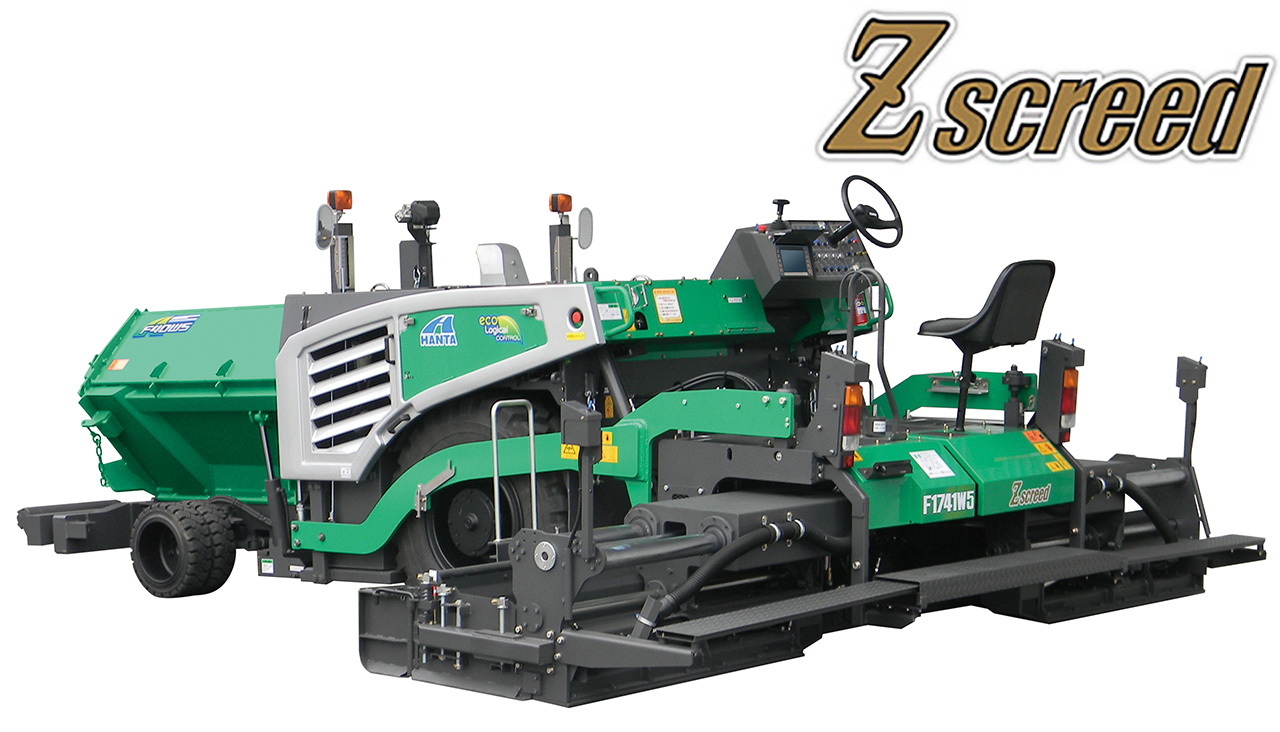

Wheel Type Mini Asphalt Paver： Model F1741W5
Wheels Type Mini Asphalt Paver: Model F1741W5
Main Technical Data

Pavements change by Zscreeds.
Also equipping with eco-mode, color display and supervisory camera for hopper inside, etc., those are more enriched for environmental performance and operability.
Main Technical Data

Type  F1741W5
Weight 7,140kg
Paving Width 1.75～4.1m
Dimensions（L×W×H） Overall length(Working) : 5,380（L）×1,955（W）×1,965（H）mm
Overall length(Transporting) : 5,360（L）×1,955（W）×1,940（H）mm
Laying Thickness 10～150mm
Laying Speed 4WD:1～11m/min
Engine 39.0kW/2,200min-1

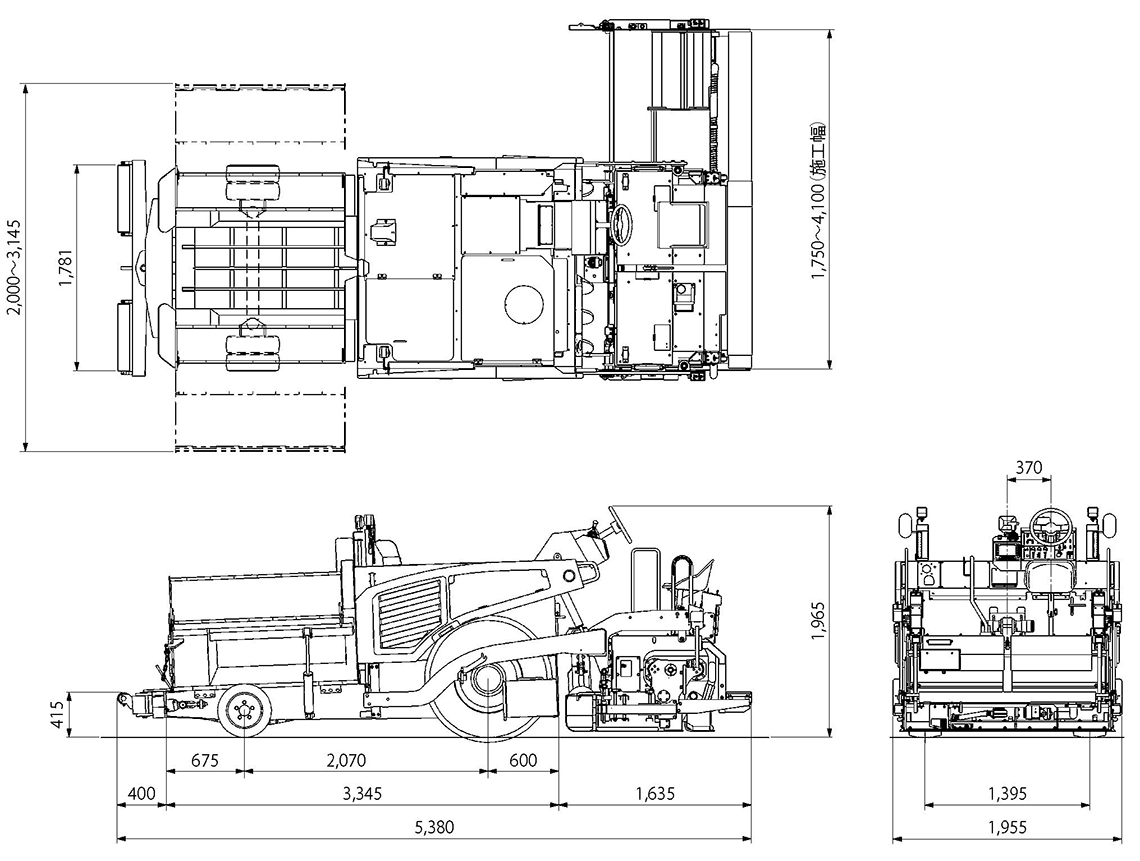

Dimensions
Wheels Type Mini Asphalt Paver: F1741W5

Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport. (97’Version)
Complied with diesel emission gas regulation in 2014 for non-road special motor vehicle.
