Asphalt Paver

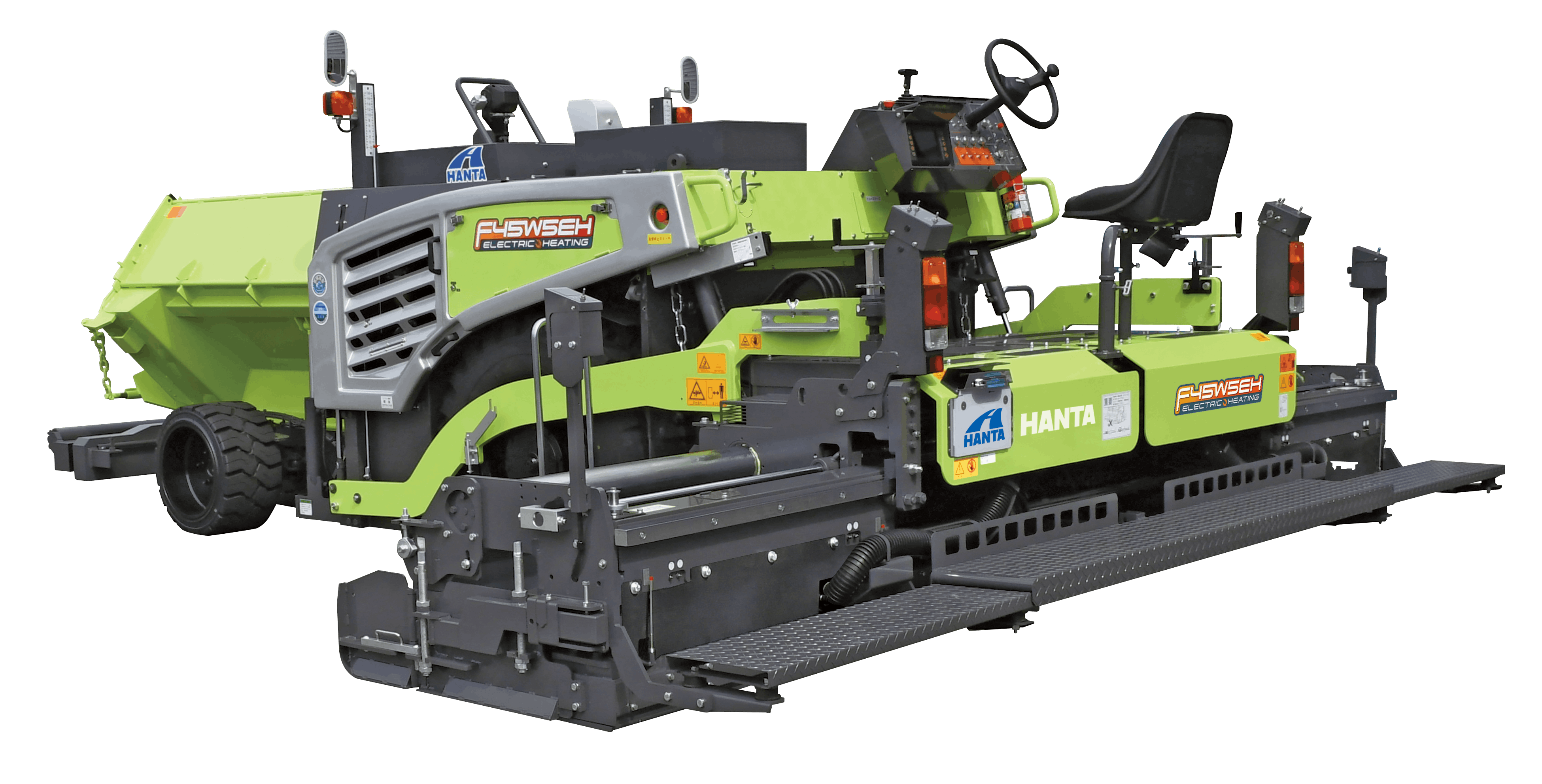

Wheel Type Mini Asphalt Paver: F45W5EH

Wheels Type Mini Asphalt Paver: F45W5EH
OUTLINE

The flame-free screed heating system ensures a safe, fire-risk-free working environment that is friendly to all personnel. Because the screed lacks a combustion mechanism, it reduces CO2 emissions during heating, making it an environmentally conscious choice. By eliminating the need for propane gas, it removes the hassle of cylinder management and setup, thereby reducing the workload. Furthermore, there is no risk of gas cylinders freezing in cold climates, allowing for construction even at sites where open flames are prohibited.

Main Technical Data

Type  F45W5EH
Weight 7,580kg
Paving Width 2.35~4.5m
Dimensions(L×W×H) Overall length(Working) : 5,370(L)×2,470(W)×1,950(H)mm
Overall length(Transporting) : 5,365(L)×2,470(W)×1,920(H)mm
Laying Thickness 10 ~ 150mm
Laying Speed 1 ~ 11m/min(In power mode : 1 ~ 12m/min)
Engine 54.6kW/2,200min-1

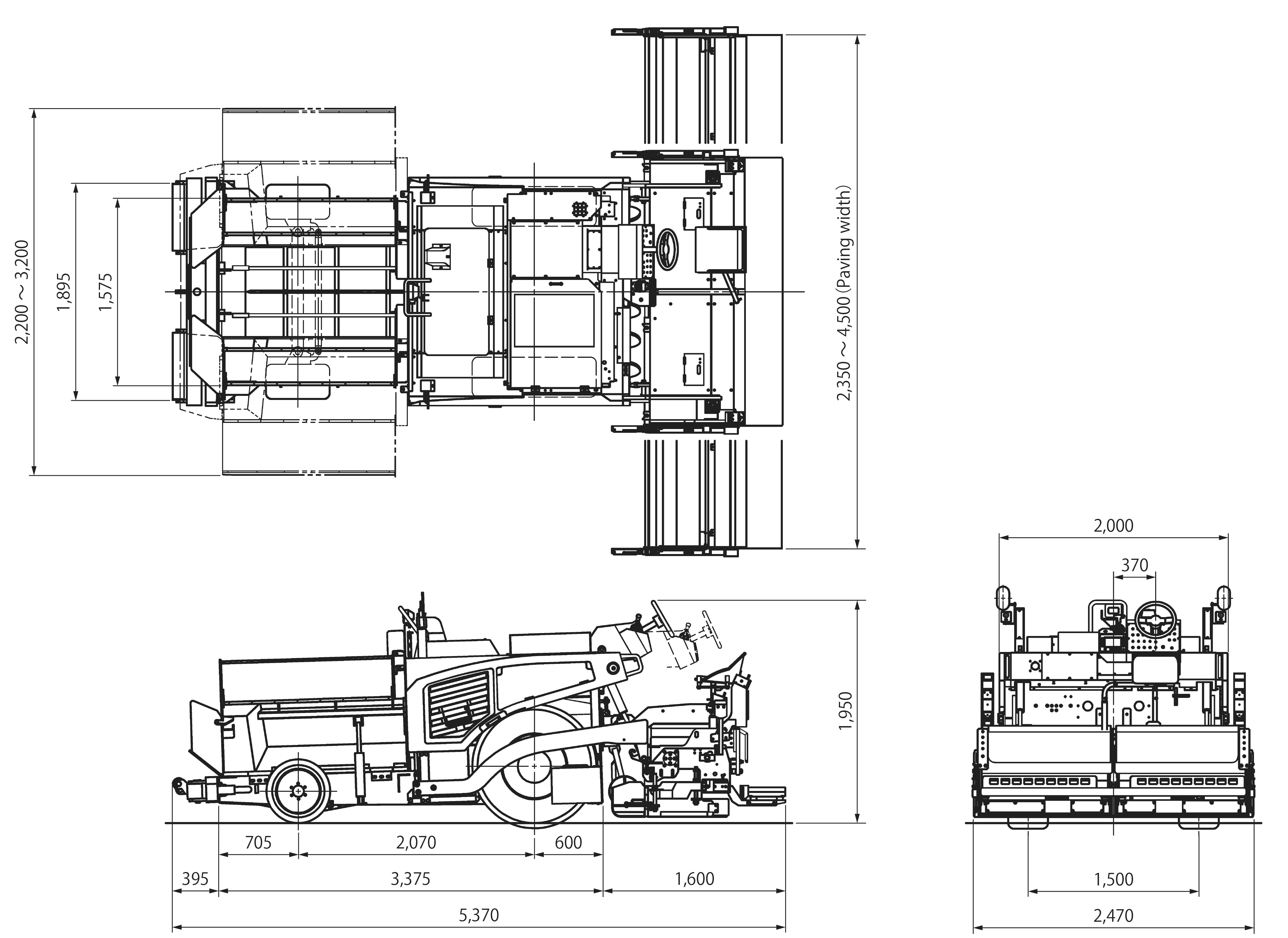

Dimensions
Wheels Type Mini Asphalt Paver: F45W5EH

Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport. (97' Version)
Complied with diesel emission gas regulation in 2014 for non-road special motor vehicle.
