Each spec value indicates a design value by manufacturer.
Each spec value of units are SI units as the international system of units.
[ ] indicates the conventional units are listed together.

Asphalt Paver

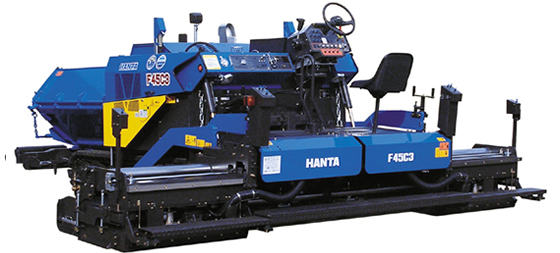

Crawler Type Mini Asphalt Paver: Model F45C3

Crawler Type Mini Asphalt Paver: F45C3
Main Technical Data

The biggest model among the Mini Pavers which engine adopted provides ample margin for coping with various working situations.
The hydraulically adjustable device for extension screed height, screed crown & invert, auto-screed burner ignition and swing out side plates are equipped as the standard for lightening an operator’s burden.

Main Technical Data

Type  F45C3
Weight 7,300kg
Paving Width 2.35~4.5m
Dimensions(L×W×H) 4,940(L)×2,470(W)×1,980(H)mm
Laying Thickness 10~150mm
Laying Speed 1~12m/min
Engine 49.0kW/2,000min-1[66.6ps/2,000r.p.m]

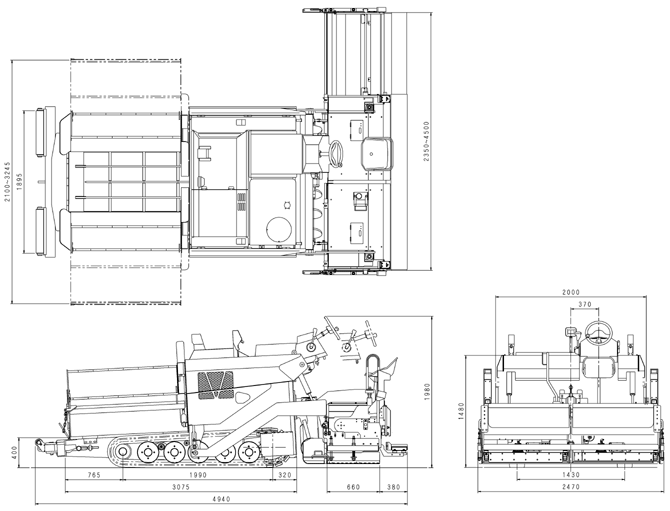

Dimensions
Crawler Type Mini Asphalt Paver: F45C3

Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport. (97’Version)
Conformity vehicle for exhaust gas control standard to designated special vehicles.
