Asphalt Paver

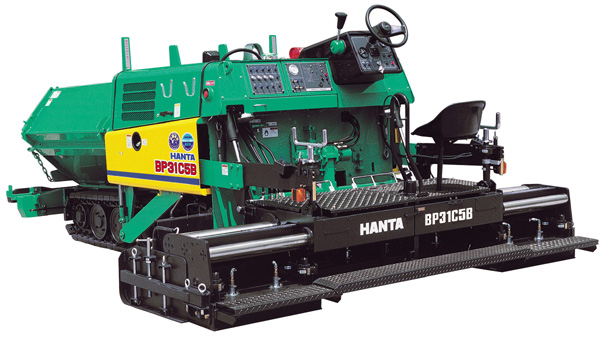

Crawler Type Mini Asphalt Paver: Model BP31C5B

Crawler Type Mini Asphalt Paver: BP31C58&BP40C
OUTLINE

Adapted a new engine conforms to Phase Ⅲ Exhaust Gas Control.
Mounted the swing type console panel for further maneuverability and operational safety.
Adopted two-lane independent control material feeders lanes similar to the large pavers.
Secures stable high quality mat finish irrespective to frequent changing laying thickness and paving width.

Main Technical Data

Type  BP31C5B
Weight 5,940kg
Paving Width 1.7~3.1m
Dimensions(L×W×H) 4,705(L)×1,860(W)×1,880(H)mm
Laying Thickness 10~150mm
Laying Speed 1~12m/min
Engine 36.0kW/1,900min-1[48.9ps/1,900r.p.m]

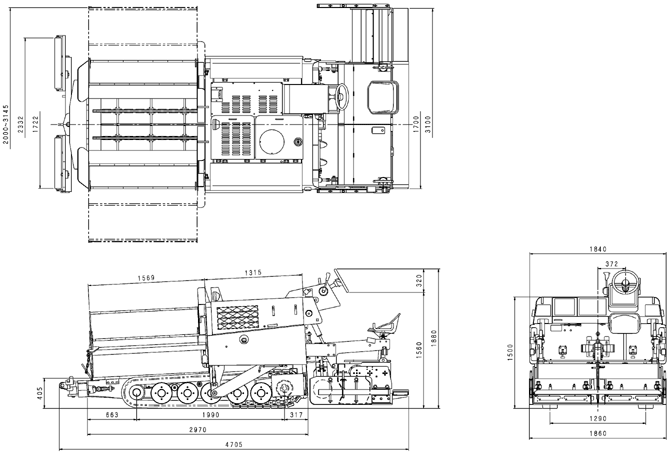

Dimensions
Crawler Type Mini Asphalt Paver: BP31C58

Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport. (97’Version)
Conformity vehicle for exhaust gas control standard to designated special vehicles.
