Asphalt Paver

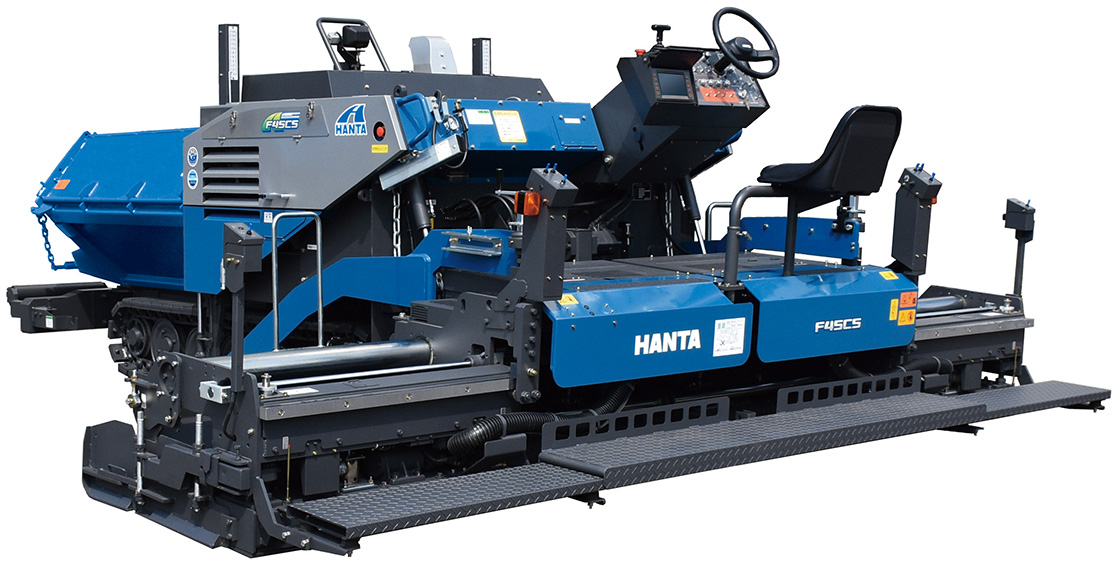

Crawler Type Mini Asphalt Paver: Model F45C5

Crawler Type Mini Asphalt Paver: F45C5
Main Technical Data

The simple but most reliable rear variable telescopic standard design screed is equipped for less maintenance cost, and the hydraulically adjustable device for extension screed height, screed crown & invert, auto-screed burner ignition and swing out side plates are equipped as the standard for lightening an operator’s burden.

Main Technical Data
Type  F45C5
Weight 7,420kg
Paving Width 2.35~4.5m

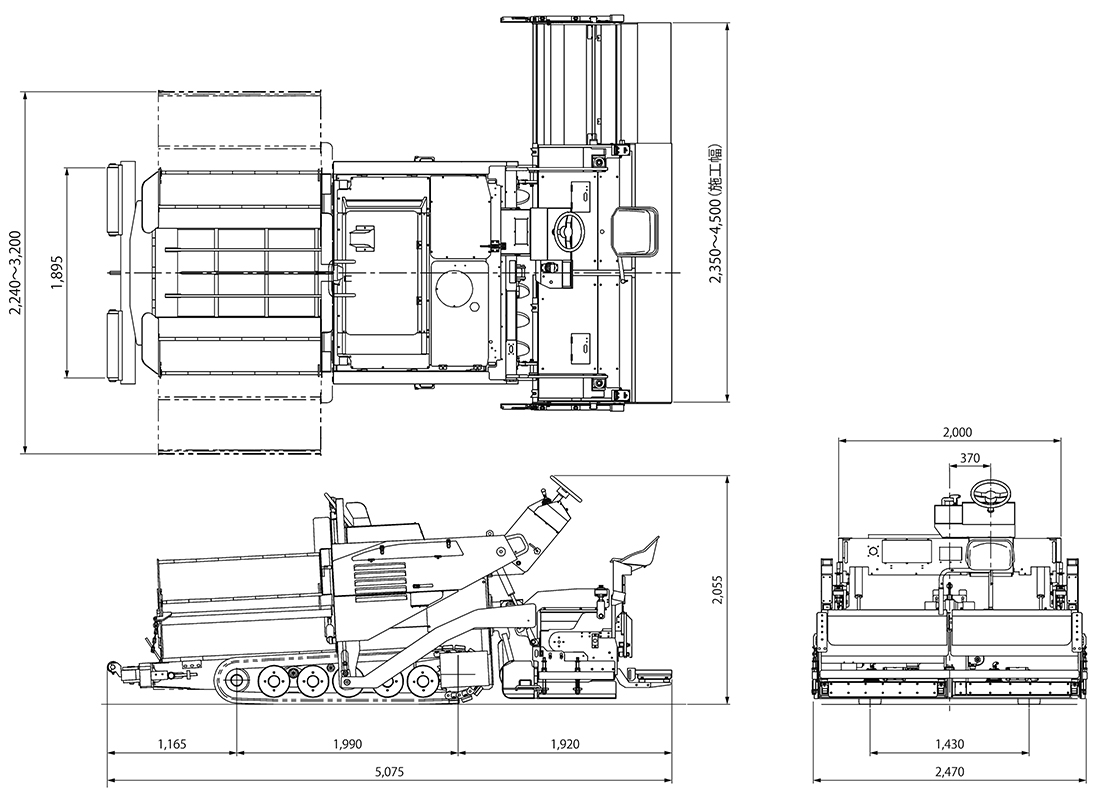

Dimensions(L×W×H) Overall length(Working) : 5,075(L)×2,470(W)×2,055(H)mm
Overall length(Transporting) : 5,075(L)×2,470(W)×2,055(H)mm
Laying Thickness 10~150mm
Laying Speed Power mode : 1~24.9m/min
Engine 54.6kW/2,200min-1
Crawler Type Mini Asphalt Paver: F45C5
Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport. (97’Version)
Complied with diesel emission gas regulation in 2014 for non-road special motor vehicle.
