Asphalt Paver

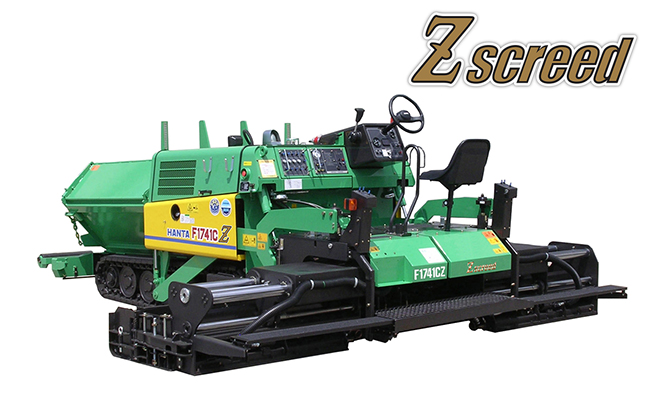

Crawler Type Mini Asphalt Paver: Model F1741C2B

Crawler Type Mini Asphalt Paver: F1741C2B
Main Technical Data

Pavements change by Zscreeds.
The density, finishing and stability in pavement are improved simultaneously and are not influenced by paving width, Laying Thickness and laying speed. Two lines center link type feeder like large class paver is adopted. It is possible to convey asphalt mix in right hand feeder or left hand feeder independently.
Maneuverability and safety are improved by tilt type control box.

Main Technical Data

Type  F1741C2B
Weight 6,580kg
Paving Width 1.75~4.1m
Dimensions(L×W×H) 5,000(L)×1,940(W)×1,880(H)mm
Laying Thickness 10~150mm
Laying Speed 1~12m/min
Engine 36.0kW/1,900min-1

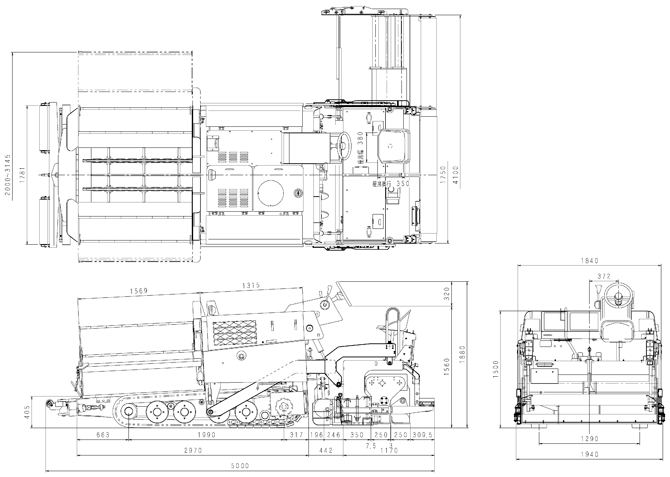

Dimensions
Crawler Type Mini Asphalt Paver: F1741C2B

Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport. (97’Version)
Conformity vehicle for exhaust gas control standard to designated special vehicles.
