Asphalt Paver

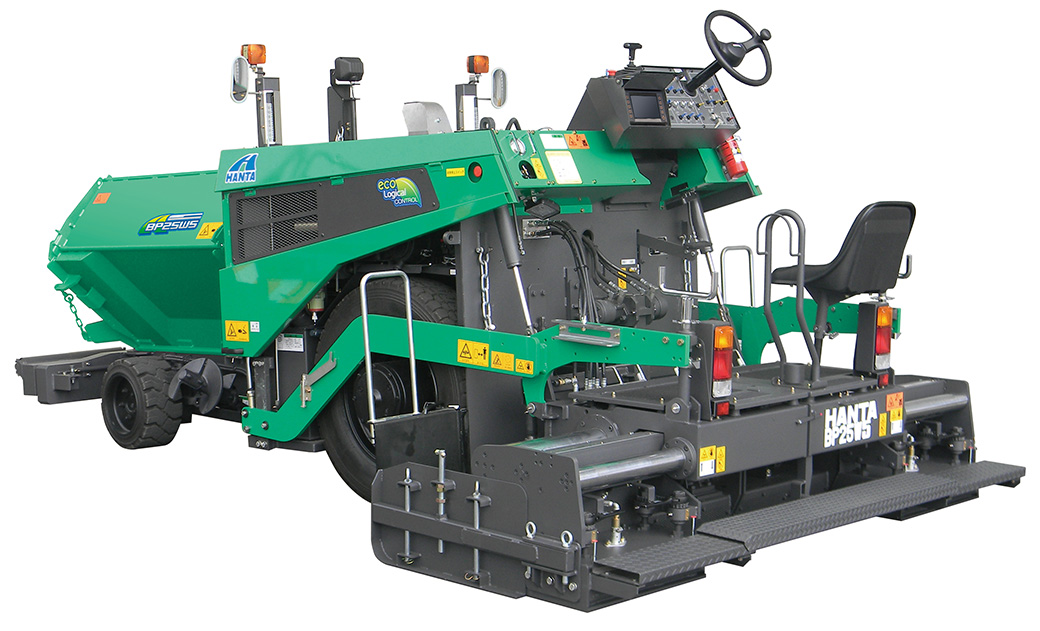

Wheel Type Mini Asphalt Paver： BP25W5
Wheels Type Mini Asphalt Paver: BP25W5
OUTLINE

Equipped with RV screed with result and trust!!
Also equipping with eco-mode, color display and supervisory camera for hopper inside, etc., those are more enriched for environmental performance and operability.

Main Technical Data

Type  BP25W5
Weight 5,470kg
Paving Width 1.4～2.5m
Dimensions（L×W×H） Overall length(Working) : 4,670（L）×1,680（W）×1,990（H）mm
Overall length(Transporting) : 4,665（L）×1,680（W）×1,990（H）mm
Laying Thickness 10～150mm
Laying Speed 4WD:1～10.5m/min
Engine 30.7kW/2,200min-1

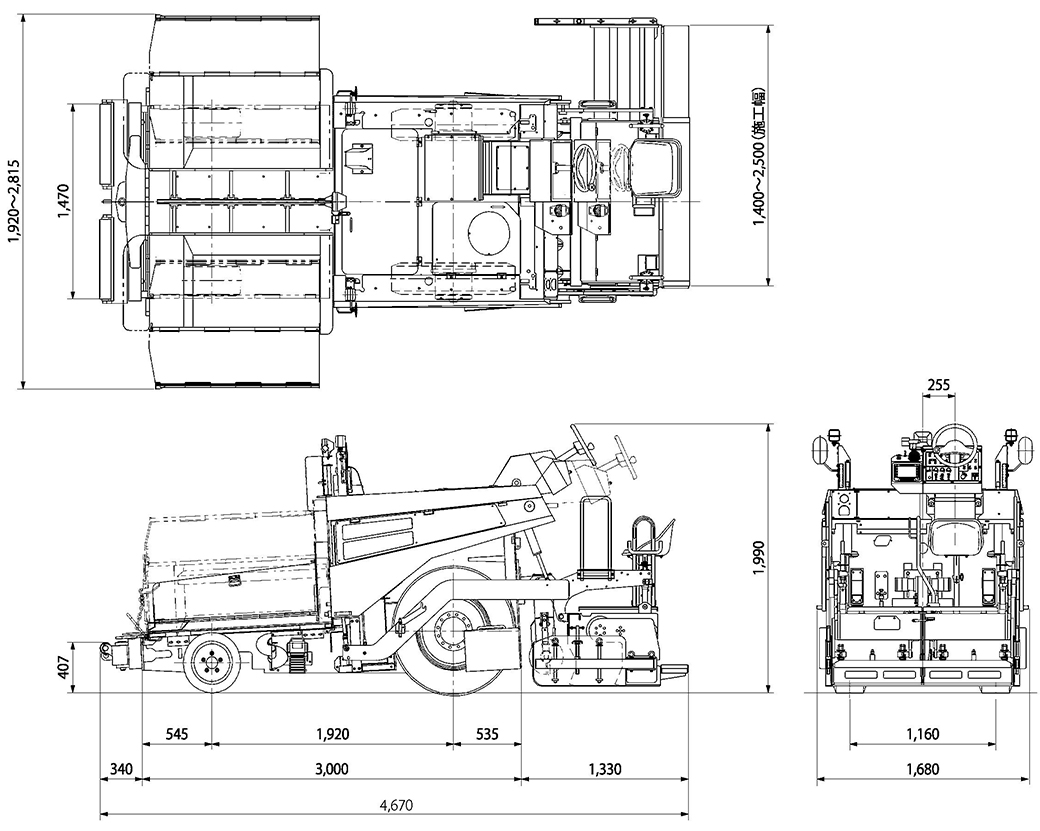

Dimensions
Wheels Type Mini Asphalt Paver: BP25W5

Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport. (97’Version)
Complied with diesel emission gas regulation in 2014 for non-road special motor vehicle.
