	Asphalt Paver Crawler Type Mini Asphalt Paver：　Model F45CJ3


	The biggest model among the Mini Pavers of which engine adopted provides ample margin forcoping with various working situations. The hydraulically adjustable device for extension screed height, screed crown & invert, auto-screed burner ignition and swing out side plates are equipped as the standard for lightening an operators' burden.

Model Designation	F45CJ3
Weight	Approx 7,380kg
Paving Width	2.0～4.5m

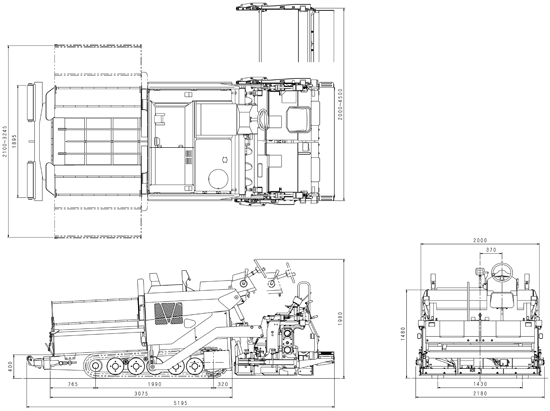

Dimension（L×W×H）	5.195（L）×2,180（W）×1,980（H）mm
Paving Thickness	10～150mm
Paving Speed	1～12m/min
Rated Output	49.0kW/2,000min^-1[66.6ps/2,000r.p.m]

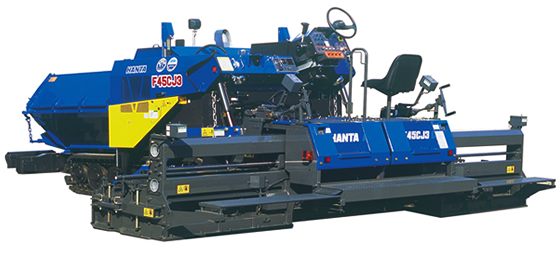

Crawler Type Mini Asphalt Paver: F45CJ3

	Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport(‘97’Version)
	Conformity vehicle for exhaust gas control standard to designated special vehicles.
