Asphalt Paver

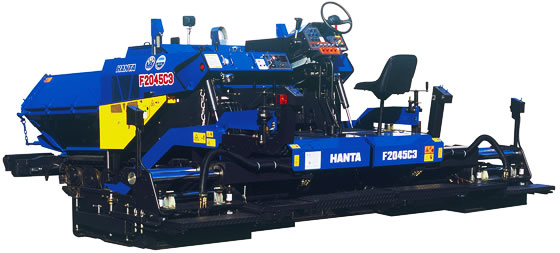

Crawler Type Mini Asphalt Paver: Model F2045C3

Crawler Type Mini Asphalt Paver: F2045C3
Main Technical Data

The biggest model among the Mini Pavers which engine adopted provides ample margin for coping with various working situations.
The hydraulically adjustable device for extension screed height, screed crown & invert, auto-screed burner ignition and swing out side plates are equipped as the standard for lightening an operator’s burden.

Main Technical Data

Model Designation  F2045C3
Weight Approx. 7,400kg
Paving Width 2.0~4.5m
Dimension(L×W×H) 5,100(L)×2,170(W)×1,980(H)mm
Paving Thickness 10~150mm
Paving Speed 1~12m/min
Rated Output 49.0kW/2,000min-1[66.6ps/2,000r.p.m]

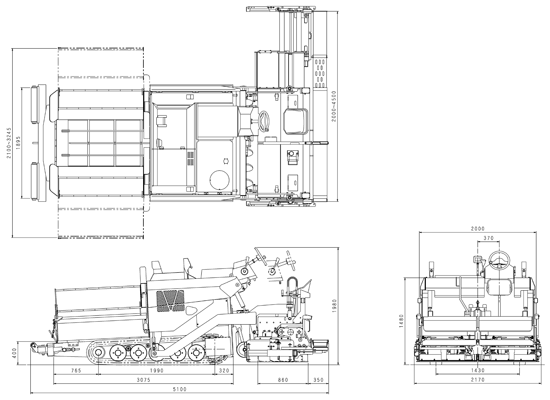

Dimensions
Crawler Type Mini Asphalt Paver: F2045C3

Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport. (97’Version)
Conformity vehicle for exhaust gas control standard to designated special vehicles.
