Asphalt Paver

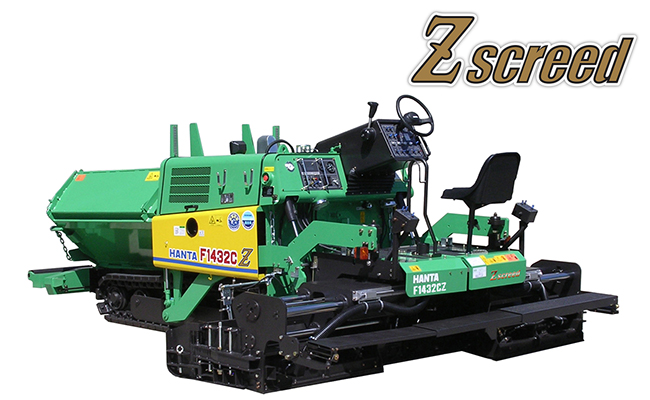

Crawler Type Mini Asphalt Paver: Model F1432C3

Crawler Type Mini Asphalt Paver: F1432C3
OUTLINE

Pavements change by Zscreeds.
The density, finishing and stability in pavement are improved and are not influenced by paving width, laying thickness and laying speed. Original center link type feeder is adopted with conveyor capacity 109 m3/h.
Maneuverability and safety in operation are improved by tilt type control box.

Main Technical Data

Model Designation  F1432C3
Weight Approx. 5,200kg
Paving Width 1.4~3.2m
Dimension(L×W×H) 4,600(L)×1,550(W)×1,720(H)mm
Paving Thickness 10~120mm
Paving Speed 1~12m/min
Rated Output 25.3kW/1,900min-1

RV3-1432

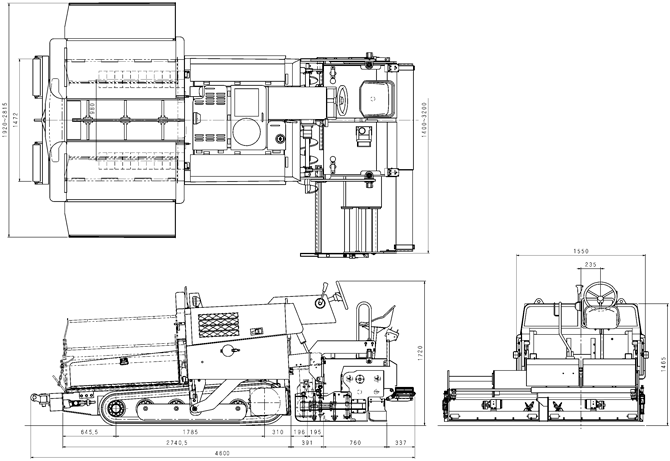

Dimensions
Crawler Type Mini Asphalt Paver: F1432C3

Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport. (97’Version)
Conformity vehicle for exhaust gas control standard to designated special vehicles.
