Asphalt Paver

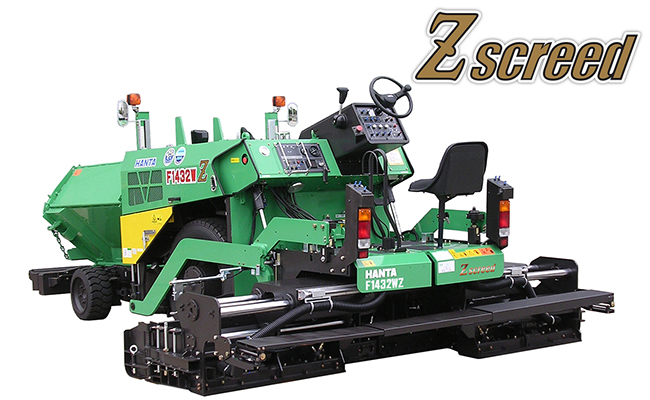

Wheel Type Mini Asphalt Paver: Model F1432W3

Wheels Type Mini Asphalt Paver: F1430W3
Main Technical Data

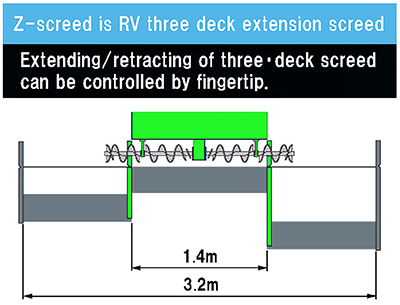

Pavements change by Zscreeds.
The density, finishing and stability in pavement are improved and are not influenced by paving width, laying thickness and laying speed. Original center link type feeder is adopted with conveyor capacity 109 m3/h.
Maneuverability and safety in operation are improved by tilt type control box.

Main Technical Data

Model Designation  F1432W3
Weight Approx. 5,800kg
Paving Width 1.4~3.2m
Dimension(L×W×H) 4,850(L)×1,655(W)×1,955(H)mm
Paving Thickness 10~120mm
Paving Speed 4WD:1~10m/min
Rated Output 25.3kW/1,900min-1

RV3-1432

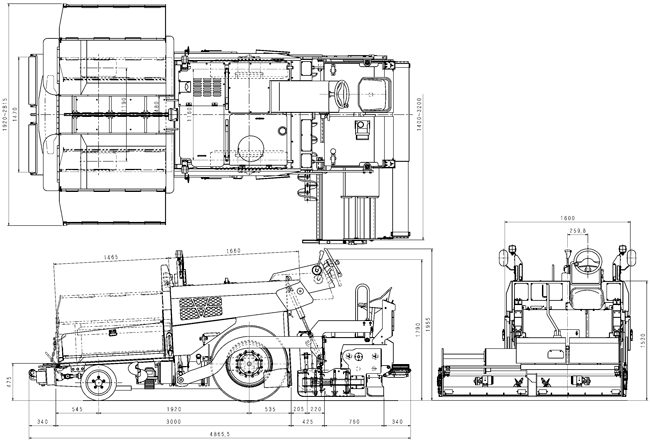

Dimensions
Wheels Type Mini Asphalt Paver: F1432W3

Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport. (97’Version)
Conformity vehicle for exhaust gas control standard to designated special vehicles.
