	Asphalt Paver Wheel Type Mini Asphalt Paver： F1430W3

Model Designation	F1430W3
Weight	Approx 5,780kg
Paving Width	1.4～3.0m

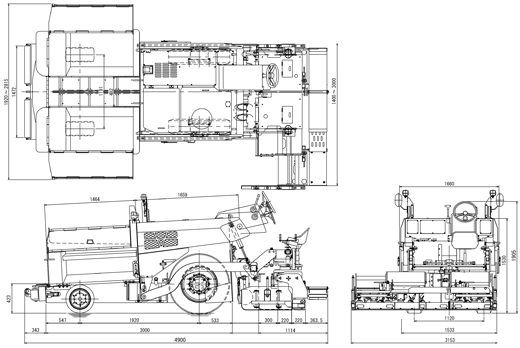

Dimension（L×W×H）	4.900（L）×1,655（W）×1,955（H）mm
Paving Thickness	10～120mm
Paving Speed	4WD:1～10m/min
Rated Output	25.3kW/1,900min^-1[34.4ps/1,900r.p.m]

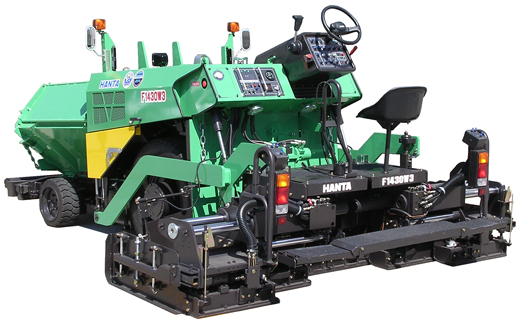

Wheels Type Mini Asphalt Paver: F1430W3

	Designated Low Noise Level Construction Machine registered to Ministry of Land Infrastructure & Transport(‘97’Version)
	Conformity vehicle for exhaust gas control standard to designated special vehicles.
