Paving Equipments & Tools :Asphalt Sprayers

Small light-weight handy portable sprayers play a very active part in confined areas asphalt emulsion patch coating. You can choose the best matching sprayers from skid type to cart type and gear pump type air pressured one etc. according to the working site conditions.

AS-FAD series

Towing Type Portable Asphalt Sprayer Model AS-FAD Series

Hanta Asphalt Sprayer
Towing Type Portable Asphalt Sprayer Model AS-FAD series

AS-FAD series has equipped with 400~800 liters capacity tank and heating device, and provides with efficient and economical spray performance for different type of bituminous materials such as straight asphalt and/or asphalt emulsion.

Main Technical Data
Tank Capacity 400~800 L
Thermometer 0~300°C(Dial Type)
Pump Type Gear Rotary Type
Spraying Capacity 30 L/min
Heating Burner for AS Tank Low pressure Diesel Fuel Gun Type Burner
Burner Capacity 15 L/H
Engine Model & Type FUJI “Robin” EH-25B, Air-cooled 4-Cycle Gasoline Engine
Rated Output 4.0 kw/1500min-1
Starting Method Recoil starter
Spray Hose 3/4” × 5m
Suction Hose 3/4” × 5m(with strainer)
pagetop

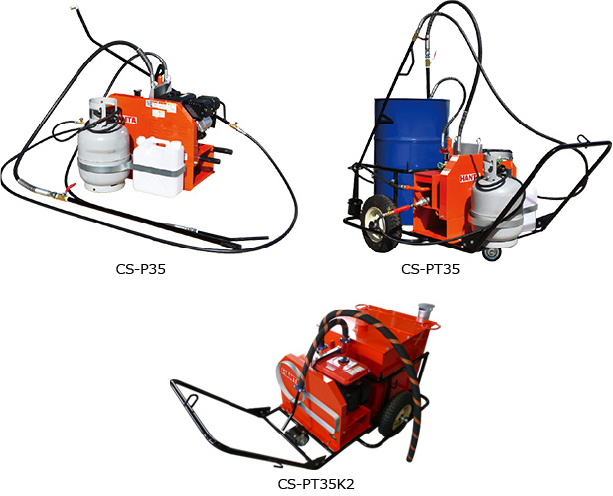

CS-P35/CS-PT35

Crawler Type Mini Asphalt Paver: F14C3&18C3
Main Technical Data
Model Designation CS-P35 CS-PT35
Spray Volume Slit nozzle Approx. 23L/min. Corn nozzle Approx.10L/min.
No. of nozzles Each one for Slit & Corn Nozzles(1/2")E
Power Source Gasoline Engine 2.57kw(3.5PS)
Pump flushing Solvent flushing(Oil Cup)
Hoses
( Suction & Delivery)
2.5m & 5.0m 1.7m & 5.0m & 0.8m
Tire size --------------- Front(solid 100φ)with brake
Rear(400x4)
Weight Approx. 75kg Approx. 110kg
pagetop

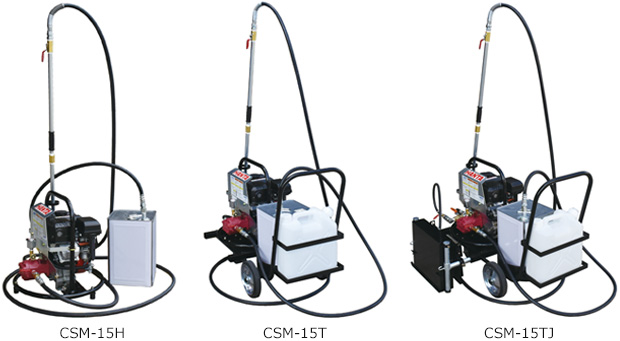

CSM-15H / CSM-15T / CSM-15TJ

CSM-15H / CSM-15T / CSM-15TJ
Main Technical Data
Model Designation CSM-15H CSM-15T CSM-15TJ
Spray Volume Slit nozzle Approx. 15L/min. Corn nozzle Approx.8L/min.
No. of nozzles Each one
for
Slit & Corn Nozzles(1/2")
Each one
for
Slit & Corn Nozzles(1/2")
Each one
for
Slit & Corn Nozzles(1/2")& Joint Nozzle(1/4")
Power Source Gasoline Engine 1.98kw(2.7PS)
Pump flushing Solvent flushing(Oil Cup)
Hoses
( Suction & Delivery)
2.5m & 5.0m
Tire size --------------- Front(solid 100φ)
with brake
Rear(solid 200φ)
Weight Approx. 34kg Approx. 50kg Approx. 57kg
pagetop

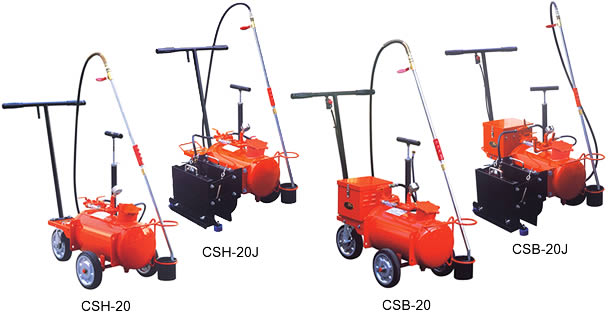

CSH-20/CSH-20J/CSB-20/CSB-20J

Crawler Type Mini Asphalt Paver: F14C3&18C3
Main Technical Data
Model Designation CSH-20 CSH-20J CSB-20 CSB-20J
Spray Volume Corn nozzle Approx. 1.8~2.8L/min.
Slit nozzle(Option) Approx. 3.25~4.16
L/min.
No. of nozzles Each one Nozzles(1/4")
Power Source Hand pump Battery drive compressor
Pump flushing Air blow flushing
Spray Hose
2.2m 2.2m
Tire size Front(Air tire 220φ)
Rear(solid)200φw/t Brake
Weight Approx. 30kg Approx. 40kg Approx. 39kg Approx. 49kg
pagetop

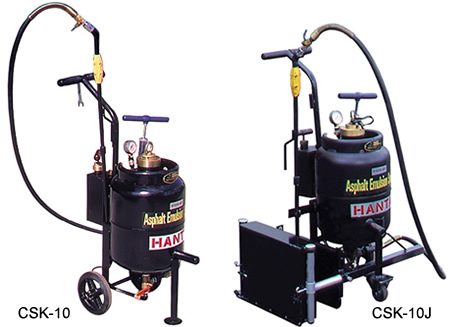

CSK-10/CSK-10J

Crawler Type Mini Asphalt Paver: F14C3&18C3
Main Technical Data
Model Designation CSK-10 CSK-10J
Spray Volume Corn nozzle Approx. 3.25~4.16L/min.
Slit nozzle(Option) Approx.3.53~5.04L/min.
No. of nozzles Each one Nozzles(3/8")
Power Source Hand pump
Pump flushing Flushing oil tank & Air blow
Spray Hose
2m 2m
Tire size 180φ
180φ&
75φSwivel
Weight Approx. 30kg Approx. 38kg
