Road Planers

Hanta Road Planer Series are born in site experiences and adaptable to various cutting jobs!!

CRP-35 II 3WD

A high performance in sharp L.H & R.H turn cut,
adaptable to round and other different profile cuttings!!

* Small turn 3-wheels

CRP-35II3WD
Main Technical Data
Model CRP-35II3WD
Cutting width 350mm
Max. cutting depth 100mm
Weight Approx. 3,760kg
Working Speed 1~15.9m/min
Rated Output 66.7kW/2,400min-1
Overall Length 2,935(L)×1,120(W)×1,890(H)mm
Dimensions
pagetop

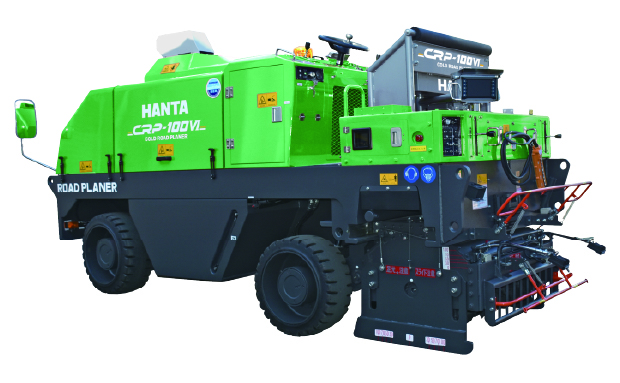

CRP-100V

An excellent cutting performance not only for a supplement of large planers but also a single unit cutting, and it makes cutting started just from the rear edge.

* 4-wheel drive
* Rear Cut Drum

CRP-100v
Main Technical Data
Model CRP-100V
Cutting width 1,000mm
Max. cutting depth 100mm
Weight Approx. 7,000kg
Working Speed 1~11.7m/min
Rated Output 95.6kW/2,200min-1
Overall Length 3,880(L)×1,500(W)×2,100(H)mm
Dimensions
pagetop

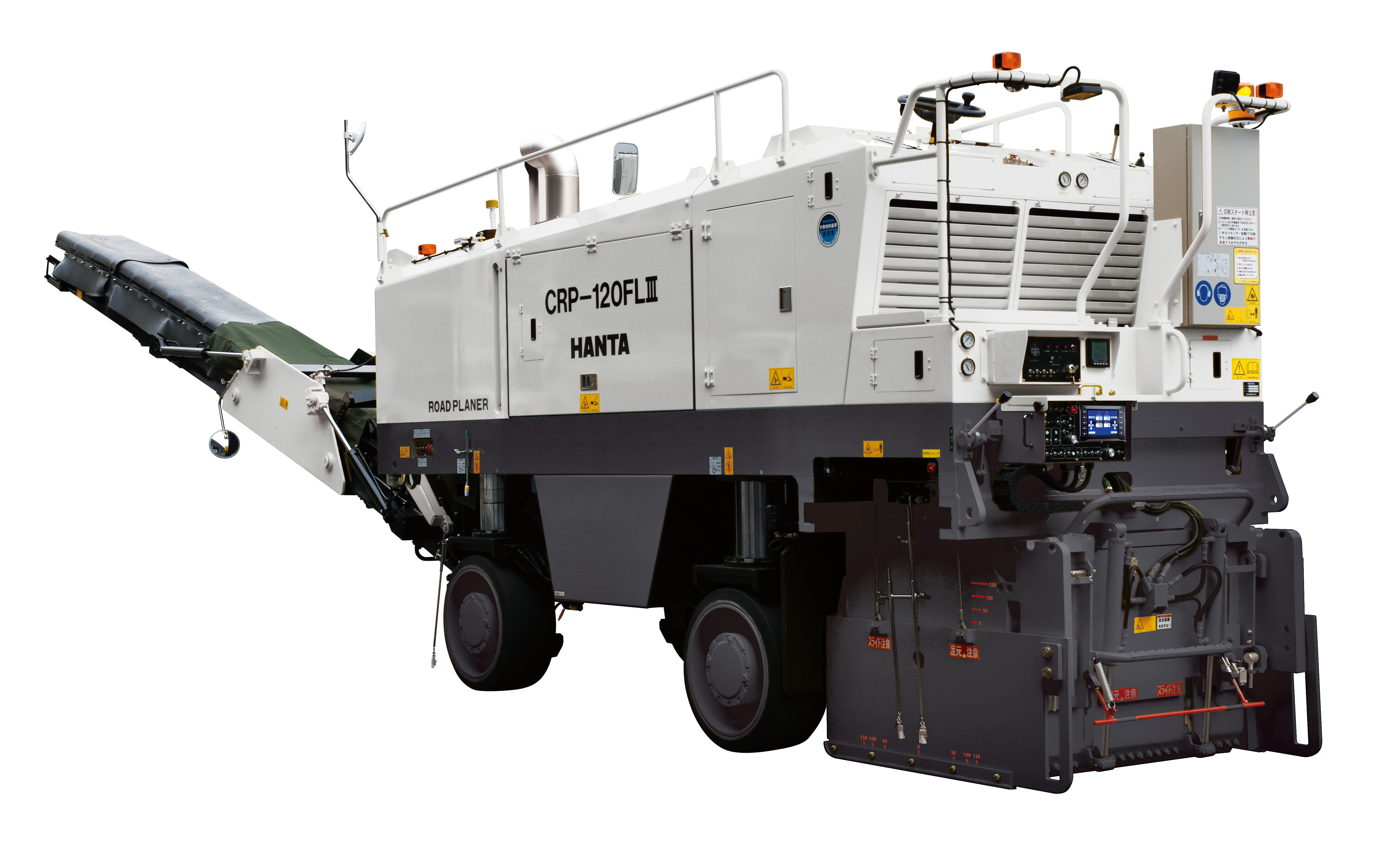

CRP-120FL III

High efficiency mini planer version with loader!!

* Rear Cut Drum
* with Front Loader

CRP-120FLIII
Main Technical Data
Model CRP-120FLIII
Cutting width 1,200mm
Max. cutting depth 150mm
Weight Approx. 17,600kg
Working Speed 1~29m/min
Rated Output 240kW/2,100min-1
Overall Length 11,570(L)×1,700(W)×4,420(H)mm

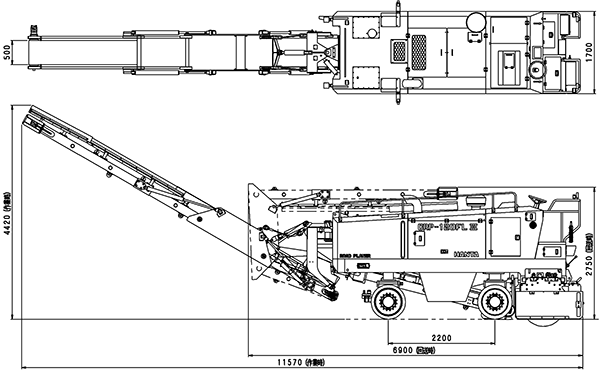

Dimensions
crp-120fl3
pagetop

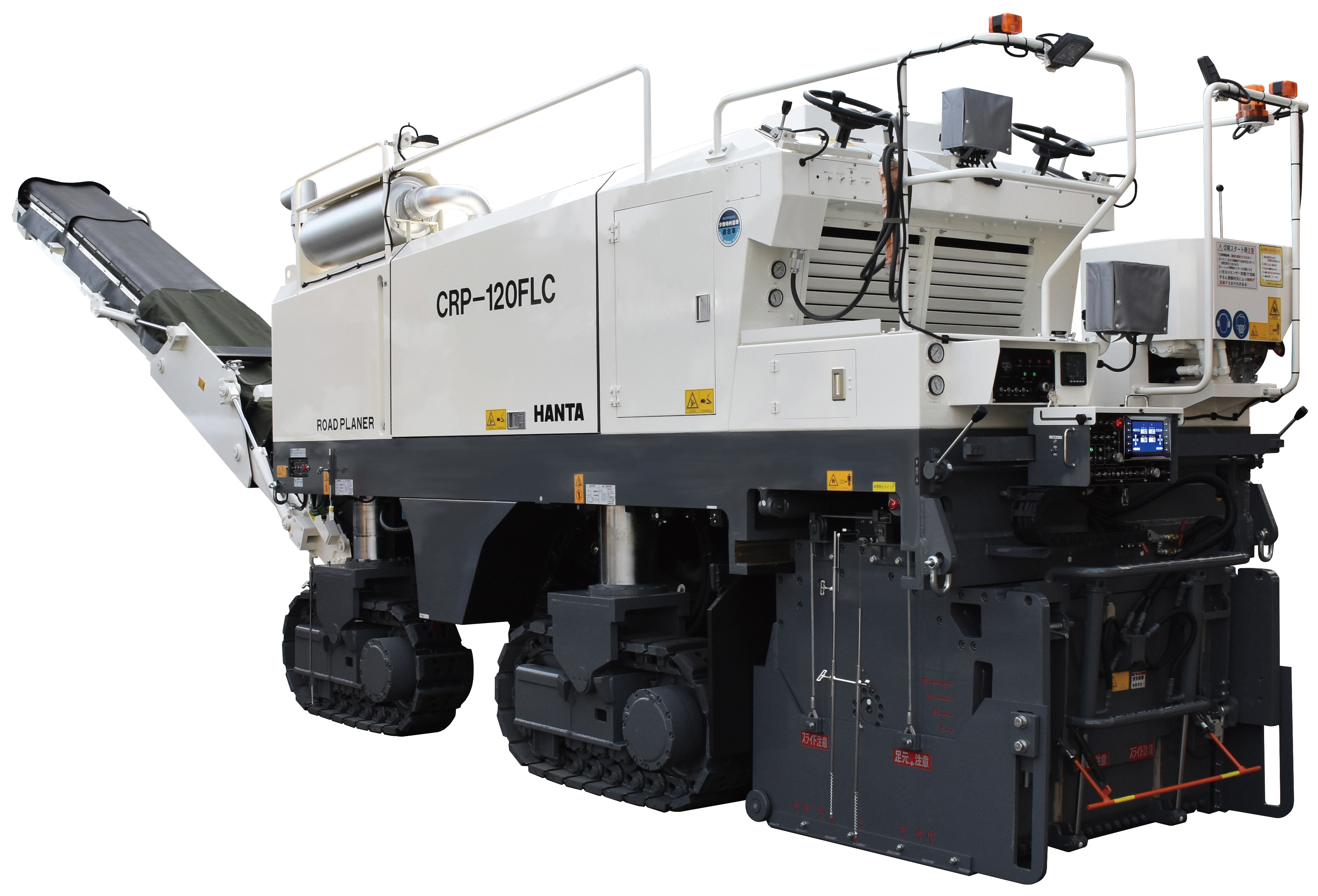

CRP-120FLC

High efficiency mini planer version with loader!!

* Rear Cut Drum
* with Front Loader
* Crawler type & four wheel drive

CRP-120FLC
Main Technical Data
Model CRP-120FLC
Cutting width 1,200mm
Max. cutting depth 150mm
Weight Approx. 18,450kg
Working Speed 1~19.5m/min
Rated Output 240kW/2,100min-1
Overall Length 11,700(L)×1,850(W)×4,440(H)mm

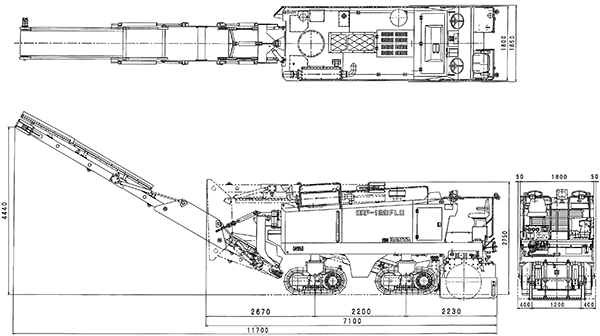

Dimensions
crp-120flc
